KEVB Airport:
NEW SMYRNA BEACH MUNI       NEW SMYRNA BEACH       FL
  Time Zone: Eastern
Lat: N 2903.3     Long: W 08056.9    Elev: 10     Var: +04  Longest Runway: 5000
    Dept. ATIS: 124.62     Arr. ATIS: 124.62   Ground: 121.32     Tower: 119.67

FBO & Flight Services info for KEVB:      FBOs: Update your Fuel Prices


EPIC AVIATIONPh: 386-409-5583 Fax: 386-428-8712 Freq: 122.9
Service
Jet
100LL
80/87
MoGas
Fuel Avail: Monday - Friday 7:00am-9:00pm Saturday - Sunday and major holiday's 7:00am - 5:00pm
Full4.735.48    Last Update: 09/08/2014 19:22

Self

AIRGATE AVIATIONPh: 386-478-0600 Fax: 386-409-0441 Freq: 122.77
Service
Jet
100LL
80/87
MoGas
Fuel Avail: Monday-Sunday 7am-7pm
Full4.585.20    Last Update: 09/18/2014 17:57

Self

NEW SMYRNA BEACHPh: 386-424-2199
-
-
Service
Jet
100LL
80/87
MoGas
Fuel Avail: Fuel Available 24/7
Full        Last Update: 09/17/2014 13:41

Self4.134.86


If you are an FBO, call 1-203-262-8900 to update your info or email: Support@FltPlan.com



 Runway & Approach Info for KEVB
  Rwy
    Length
Land Dist Avail**
  Approach*
    Rwy
Length
Land Dist Avail**
 Approach*
02
4000x100  3215'


20
  4000x100  4000'

07
5000x75  4665'


25
  5000x75  4700'

11
4319x100  4319'


29
  4319x100  4319'

 * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown
** For any Declared Landing Distance Available, please see A/FD or Approach plates


 Runway Weight Capability   (lbs.)   more info on Runway Weight Capability
Runway IDSingle WheelDouble WheelDouble Tandem WheelDual Double Wheel
02/2055,000N/AN/AN/A
07/2555,000N/AN/AN/A
11/2955,000N/AN/AN/A
These numbers are Advisory and are not limits.   The Airport Manager should have more accurate Weight Limits
Please email Support@FltPlan.com for further information.


 Approach Charts for KEVB
  View Approaches



 Current Weather/Notams    (Metars, TAFs, Notams, NWS Forecast, PIREPS, and nearby weather)


 Customs Information             ( Send updates to Support@FltPlan.com )
Customs Not Available


 A/FD
Click here to view A/FD (Airport/Facility Directory) for NEW SMYRNA BEACH MUNIA/FD Legend



Database effective date: 09/18/2014

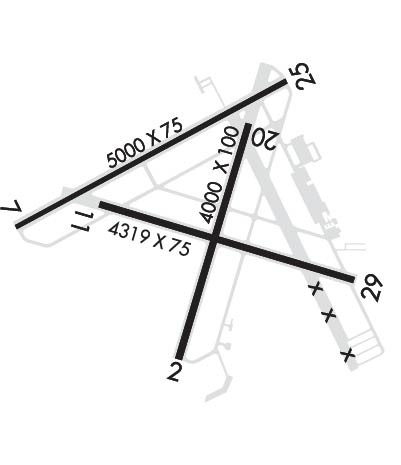

Airport Diagram of KEVB
Airport Diagram might not be current.

Facility Name: NEW SMYRNA BEACH MUNI
City Name: NEW SMYRNA BEACH
County: VOLUSIA
State abbrev: FL
State Name: FLORIDA

Ownership: PUBLICLY OWNED
Use: OPEN TO THE PUBLIC
Owner's Name: CITY OF NEW SMYRNA BEACH
Address: 210 SAMS AVE
 NEW SMYRNA BEACH, FL 32168
Owner's Phone: 386-424-2199

Manager's Name: RHONDA WALKER
Address: NEW SMYRNA BEACH MUNI AIRPORT, 602 SKYLINE DRIVE
 NEW SMYRNA BEACH, FL 32168
Phone: 386-424-2199

FAA Region: SOUTHERN
FAA Field Office: ORL
2006- Photo courtesy of Renee Richards

Click here for full scale & interactive Sectional view of KEVB
Click here for full scale & interactive Sectional view of KEVB






Sunrise / Sunset times for:  NEW SMYRNA BEACH MUNI
Date: Sunrise Sunset
09/18/14 Thursday7:1019:25
09/19/14 Friday7:1019:24
09/20/14 Saturday7:1119:23
09/21/14 Sunday7:1219:22
09/22/14 Monday7:1219:21
09/23/14 Tuesday7:1319:19
09/24/14 Wednesday7:1319:18
 :
Date: Sunrise Sunset
09/25/14 Thursday7:1419:17
09/26/14 Friday7:1419:16
09/27/14 Saturday7:1519:15
09/28/14 Sunday7:1519:13
09/29/14 Monday7:1619:12
09/30/14 Tuesday7:1619:11
10/01/14 Wednesday7:1719:10

 Airport Facilities
Airport Attendance Schedule: 7 Days A Week 0700-2200; FOR ATTENDANT AFTER 2200 CALL 386-424-2199.
Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS)
Airport Lighting Schedule: ACTVT PAPI RY 29, MIRL RYS 11/29 & RYS 07/25 AFTER 2200 - CTAF.
Airport Storage Available: Tie Downs, Hanger
Extra Services Available: Charter, Flight Instruction, Aircraft Rental, Aircraft Sales
Wind Indicator: YES - (lighted)
Control Tower: YES
CTAF Frequency: 119.675
Unicom Frequency: 122.950
Rotating Beacon Color: CLEAR-GREEN (Light Land Airport)
Segmented Circle: YES
Landing Fee: NO

Airport Services
Type of Fuel Available: Grade 100LL, JET A (freeze point -40C)
Airframe Repair Service: MAJOR
Power Plant Repair Service: MAJOR

Geographic Data
Latitude: N2903.3   Longitude: W08056.9  (ESTIMATED)
Arpt Elevation: 10ft (SURVEYED)
Magnetic Variation: 04W
3 miles NW of NEW SMYRNA BEACH
Traffic Pattern Altitude: TPA FOR LIGHT ACFT 788 FT AGL; HEAVY ACFT 1188 FT AGL.
Sectional Chart: JACKSONVILLE

  Aircraft Data
Operations (reported)
YearlyAvg. Daily
General Aviation transient: 46058126
General Aviation Local: 84851232
Air Taxi: 690
Commerical: 10
Commuter: 00
Military: 70
Aircraft based on Field
General Aviation Singles: 75
General Aviation Multi: 11
Jet Aircraft: 1
General Aviation Helicopters: 3
Military Aircraft: 0
Gliders: 0
Ultralights: 0

  FAA Services
FSS on field: NO
FSS tie-in:SAINT PETERSBURG
FSS Phone: 1-800-WX-BRIEF
Who issues Notams: EVB
Notam D service at airport: YES
ARTCC Name: JACKSONVILLE

  Federal Status
Airport Certification:
Aircraft Rescue & Firefighting Index: None
Airport of Entry: No
Custom Landing Rights: No
Joint Civil/Military: No
Military Landing rights: YES

Runway Identification: 02/20
Length: 4000 ft
Width: 100 ft
Surface: ASPHALT-FAIR CONDITION
Edge lights:




Runway: 02

Runway: 20
Mag heading:  21°Mag heading:  201°
Rwy Slope:  .02% UpRwy Slope:  -.02% Down
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  BASICMarkings:  BASIC
Marking Condition:  POOR; RY 02/20 MARKINGS FADEDMarking Condition:  POOR
Arresting Dev:  Arresting Dev:
Lat & Long:  N2902.9  W08057.0Lat. & Long.:  N2903.6  W08056.8
Elev:  8.2 ft. MSLElev:  8.9 ft. MSL
TCH:  TCH:
Visual Glide Path:  Visual Glide Path:
Displaced Threshold:  785 feetDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  8.7 feetTouchdown Elev.:  8.9 feet
Visual Glide Slope:  Visual Glide Slope:
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  NOREIL:  NO
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  OTHER THAN UTILITY RUNWAY WITH A VISUAL APPROACHRunway Category:  OTHER THAN UTILITY RUNWAY WITH A VISUAL APPROACH
Declared Distances:  Declared Distances:
Obstructions:  TREESObstructions:  PLINE
Marked:  NOT Marked/LightedMarked:  NOT Marked/Lighted
Clearance slope:  9:1; RWY 02 APCH RATIO 32:1 AT DSPLCD THLD.Clearance slope:  25:1
Obstruction height:  42 feet AGLObstruction height:  51 feet AGL
Dist. from runway:  578 feetDist. from runway:  1465 feet
Centerline offset:  47 right of centerlineCenterline offset:
Comments:  Comments:

Runway Identification: 07/25
Length: 5000 ft
Width: 75 ft
Surface: ASPHALT-GOOD CONDITION
Edge lights: Medium Intensity




Runway: 07

Runway: 25
Mag heading:  66°Mag heading:  246°
Rwy Slope:  .05% UpRwy Slope:  -.05% Down
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  BASICMarkings:  BASIC
Marking Condition:  GOODMarking Condition:  GOOD
Arresting Dev:  Arresting Dev:
Lat & Long:  N2903.3  W08057.5Lat. & Long.:  N2903.7  W08056.7
Elev:  7.2 ft. MSLElev:  9.6 ft. MSL
TCH:  45 ft. AGLTCH:  46 ft. AGL
Visual Glide Path:  3.00 degreesVisual Glide Path:  3.00 degrees
Displaced Threshold:  335 feetDisplaced Threshold:  300 feet
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  8.5 feetTouchdown Elev.:  10.0 feet
Visual Glide Slope:  4-Light PAPI on LEFT side of RunwayVisual Glide Slope:  4-Light PAPI on LEFT side of Runway
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  NOREIL:  NO
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  OTHER THAN UTILITY RUNWAY WITH A VISUAL APPROACHRunway Category:  OTHER THAN UTILITY RUNWAY WITH A VISUAL APPROACH
Declared Distances:  Declared Distances:
Obstructions:  FENCEObstructions:  FENCE
Marked:  NOT Marked/LightedMarked:  NOT Marked/Lighted
Clearance slope:  RWY 07 APCH RATIO 28:1 AT DSPLCD THLD DUE TO 15 FT ROAD 92 FT FROM RY END 250 FT R OF CNTRLN.Clearance slope:  RWY 25 APCH RATIO 32:1 AT DSPLCD THLD DUE TO 15 FT ROAD 190 FT FM RY END 95 FT R.
Obstruction height:  6 feet AGLObstruction height:  6 feet AGL
Dist. from runway:  90 feetDist. from runway:  172 feet
Centerline offset:  250 right of centerlineCenterline offset:
Comments:  RY 07 15 FT ROAD 92 FT FM AER, 250 FT R.Comments:  RY 25 15 FT ROAD 190 FT FM RY END 95 FT R OF CNTRLN.

Runway Identification: 11/29
Length: 4319 ft
Width: 100 ft
Surface: ASPHALT-GOOD CONDITION
Edge lights: Medium Intensity




Runway: 11

Runway: 29
Mag heading:  111°Mag heading:  291°
Rwy Slope:  .06% UpRwy Slope:  -.06% Down
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  NONPRECISION INSTRUMENTMarkings:  NONPRECISION INSTRUMENT
Marking Condition:  POOR; RY 11/29 MARKINGS FADEDMarking Condition:  FAIR
Arresting Dev:  Arresting Dev:
Lat & Long:  N2903.4  W08057.2Lat. & Long.:  N2903.2  W08056.4
Elev:  7.6 ft. MSLElev:  10.1 ft. MSL
TCH:  TCH:  32 ft. AGL
Visual Glide Path:  3.00 degreesVisual Glide Path:  3.00 degrees
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  10.4 feetTouchdown Elev.:  10.4 feet
Visual Glide Slope:  4-Light PAPI on LEFT side of RunwayVisual Glide Slope:  4-Light PAPI on LEFT side of Runway
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  NOREIL:  NO
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  OTHER THAN UTILITY RUNWAY WITH A VISUAL APPROACHRunway Category:  OTHER THAN UTILITY RUNWAY WITH A NON PRECISION APPROACH HAVING VISIBILITY MINIMUMS GREATER THAN 3/4 MILE
Declared Distances:  Declared Distances:
Obstructions:  TREEObstructions:  ROAD
Marked:  NOT Marked/LightedMarked:  NOT Marked/Lighted
Clearance slope:  20:1Clearance slope:  20:1
Obstruction height:  57 feet AGLObstruction height:  15 feet AGL
Dist. from runway:  1357 feetDist. from runway:  500 feet
Centerline offset:  250 right of centerlineCenterline offset:  250 feet left of centerline
Comments:  Comments:

Remarks
  • THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
  • RWY 02/20 AND TWY CRACKING WITH GRASS.
  • VOLUNTARY NOISE ABATEMENT: IN EFFECT CTC ARPT FOR MGR DETAILS AT 386-424-2199.
  • BIRDS ON & INVOF ARPT.
  • (E81) SHORT TWY FM MID RWY 15-33 TO TIE DOWN AREA ONLY TWY LGTD.
  • ARPT CLSD FOR ULTRALIGHTS EXCEPT PPR 386-424-2199.

  • Federal Agreements
  • NATIONAL PLAN OF INTEGRATED AIRPORT SYSTEMS (NPIAS)
  • GRANT AGREEMENTS UNDER FAAP/ADAP/AIP
  • SURPLUS PROPERTY AGREEMENT UNDER REGULATION 16-WAA
  • ASSURANCES PURSUANT TO TITLE VI, CIVIL RIGHTS ACT OF 1964
  • AGREEMENT UNDER DLAND OR DCLA HAS EXPIRED.

  • Airport Inspection Data
    Airport Inspected: STATE - performed by STATE AERONAUTICAL PERSONNEL
    Inspection Date: 08/13/2013



    Airport Communications & Frequencies:
    ATIS Frequencies:   Hours(local) of Operation: CONTINUOUS
    124.625
    NEW SMYRNA BEACH Tower Frequencies:   Hours(local) of operation: 0700-2200
    119.675
    NEW SMYRNA BEACH Ground Frequencies:
    121.325
    CTAF Frequency:
    119.675
    Unicom Frequency:
    122.950
    DAYTONA Primary Approach Frequencies:
    125.35
    322.3
    DAYTONA Primary Departure Frequencies:
    125.35
    322.3
    19/6/21
