KRST Airport:
ROCHESTER INTL       ROCHESTER       MN
  Time Zone: Central
Lat: N 4354.5     Long: W 09230.0    Elev: 1317     Var: -01  Longest Runway: 9034
    Dept. ATIS: 120.5     Arr. ATIS: 120.5     AWOS: 120.5   Ground: 121.9     Tower: 118.3

FBO & Flight Services info for KRST:      FBOs: Update your Fuel Prices

  click here
Located on the general aviation ramp of Rochester International Airport, Signature-Rochester provides the finest General Aviation aircraft and pilot services. Our Customer Service staff is available 24 hours a day, 7 days a week to handle your travel needs, so never hesitate to call.
Ph: 507-282-1717   website E-Mail Signature Flight Support Fax: 507-282-9939 Freq: 122.95

Service
Jet
100LL
80/87
MoGas
Fuel Avail: 24 hours, 7 days a week
Full7.447.79    Last Update: 12/20/2014 22:13:53

Self  6.79
Misc. Info:


ASOSPh: 507-285-0298
-
Freq: 120.5


If you are an FBO, call 1-203-262-8900 to update your info or email: Support@FltPlan.com



 Runway & Approach Info for KRST
  Rwy
    Length
Land Dist Avail**
  Approach*
    Rwy
Length
Land Dist Avail**
 Approach*
02
7301x150  7301'


20
  7301x150  7301'

13
9034x150  9034'
ILS
 109.10 - 131°

31
  9034x150  9034'
ILS
 108.50 - 311°
 * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown
** For any Declared Landing Distance Available, please see A/FD or Approach plates


 Runway Weight Capability   (lbs.)   more info on Runway Weight Capability
Runway IDSingle WheelDouble WheelDouble Tandem WheelDual Double Wheel
02/20100,000175,000300,000N/A
13/31100,000175,000300,000N/A
These numbers are Advisory and are not limits.   The Airport Manager should have more accurate Weight Limits
Please email Support@FltPlan.com for further information.


 Approach Charts for KRST
  View Approaches



 Current Weather/Notams    (Metars, TAFs, Notams, NWS Forecast, PIREPS, and nearby weather)
Sponsored by:


 Customs Information             ( Send updates to Support@FltPlan.com )
Phone: 507-285-5278Fax: 507-282-9939
Comments: 1 hr advance notice required. Business hrs 0800-1630 Monday-Friday.


 A/FD
Click here to view A/FD (Airport/Facility Directory) for ROCHESTER INTLA/FD Legend



Database effective date: 11/13/2014

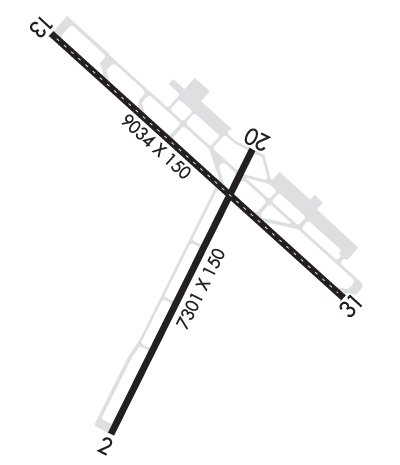

Airport Diagram of KRST
Airport Diagram might not be current.

Facility Name: ROCHESTER INTL
City Name: ROCHESTER
County: OLMSTED
State abbrev: MN
State Name: MINNESOTA

Ownership: PUBLICLY OWNED
Use: OPEN TO THE PUBLIC
Owner's Name: CITY OF ROCHESTER
Address: CITY HALL
 ROCHESTER, MN 55904
Owner's Phone: 507-282-2328

Manager's Name: MARTIN P. LENSS
Address: HELGERSON DR. SW
 ROCHESTER, MN 55902
Phone: 507-282-2328

FAA Region: GREAT LAKES
FAA Field Office: DMA
Click here to submit your photo
Click here for full scale & interactive Sectional view of KRST
Click here for full scale & interactive Sectional view of KRST






Sunrise / Sunset times for:  ROCHESTER INTL
Date: Sunrise Sunset
12/20/14 Saturday7:4116:35
12/21/14 Sunday7:4116:35
12/22/14 Monday7:4216:36
12/23/14 Tuesday7:4216:36
12/24/14 Wednesday7:4316:37
12/25/14 Thursday7:4316:37
12/26/14 Friday7:4316:38
 :
Date: Sunrise Sunset
12/27/14 Saturday7:4416:39
12/28/14 Sunday7:4416:39
12/29/14 Monday7:4416:40
12/30/14 Tuesday7:4416:41
12/31/14 Wednesday7:4416:42
01/01/15 Thursday7:4516:43
01/02/15 Friday7:4516:44

 Airport Facilities
Airport Attendance Schedule: CONTINUOUS
Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS)
Airport Lighting Schedule: DUSK-DAWN. WHEN ATCT CLSD HIRL RY 13/31 PRESET; TO INCR INTSTY & ACTVT MIRL RY 02/20 & MALSR RY 13/31 - CTAF.
Airport Storage Available: Hanger
Extra Services Available: Air Ambulance, Avionics, Charter, Flight Instruction, Aircraft Rental
Wind Indicator: YES - (lighted)
Control Tower: YES
CTAF Frequency: 118.300
Unicom Frequency: 122.950
Rotating Beacon Color: CLEAR-GREEN (Light Land Airport)
Segmented Circle: NO
Landing Fee: NO

Airport Services
Type of Fuel Available: Grade 100LL, JET A (freeze point -40C)
Airframe Repair Service: MAJOR
Power Plant Repair Service: MAJOR

Geographic Data
Latitude: N4354.5   Longitude: W09230.0  (ESTIMATED)
Arpt Elevation: 1317ft (SURVEYED)
Magnetic Variation: 01E
7 miles SW of ROCHESTER
Traffic Pattern Altitude:
Sectional Chart: CHICAGO

  Aircraft Data
Operations (reported)
YearlyAvg. Daily
General Aviation transient: 1736348
General Aviation Local: 1047629
Air Taxi: 00
Commerical: 1241134
Commuter: 00
Military: 456713
Aircraft based on Field
General Aviation Singles: 57
General Aviation Multi: 4
Jet Aircraft: 3
General Aviation Helicopters: 0
Military Aircraft: 0
Gliders: 0
Ultralights: 1

  FAA Services
FSS on field: NO
FSS tie-in:PRINCETON
FSS Phone: 1-800-WX-BRIEF
Who issues Notams: RST
Notam D service at airport: YES
ARTCC Name: MINNEAPOLIS

  Federal Status
Airport Certification: AIRPORT RECEIVING SCHEDULED AIR CARRIER SERVICE FROM CARRIERS CERTIFICATED BY THE CIVIL AERONAUTICS BOARD; 24 HR PPR FOR UNSKED ACR OPNS WITH MORE THAN 9 PSGR SEATS BTN 2300-0500; CALL 507-254-1161.
Aircraft Rescue & Firefighting Index: AIRPORT HAS A CERTIFICATE UNDER CFR PART 139
Airport of Entry: No
Custom Landing Rights: YES
Joint Civil/Military: No
Military Landing rights: YES

Runway Identification: 02/20
Length: 7301 ft
Width: 150 ft
Surface: CONCRETE-GOOD CONDITION
Edge lights: Medium Intensity

Treatment: WIRE COMB OR WIRE TINE




Runway: 02

Runway: 20
Mag heading:  25°Mag heading:  205°
Rwy Slope:  -.45% DownRwy Slope:  .45% Up
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  NONPRECISION INSTRUMENTMarkings:  NONPRECISION INSTRUMENT
Marking Condition:  GOODMarking Condition:  GOOD
Arresting Dev:  Arresting Dev:
Lat & Long:  N4353.7  W09230.4Lat. & Long.:  N4354.8  W09229.7
Elev:  1314.6 ft. MSLElev:  1282.0 ft. MSL
TCH:  48 ft. AGLTCH:  50 ft. AGL
Visual Glide Path:  3.00 degreesVisual Glide Path:  3.05 degrees
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  1317.4 feetTouchdown Elev.:  1304.6 feet
Visual Glide Slope:  4-BOX VASI ON LEFT SIDE OF RUNWAY; OPERATE CONTINUOUSLY.Visual Glide Slope:  4-Light PAPI on LEFT side of Runway; OPERATE CONTINUOUSLY.
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  YESREIL:  YES
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  OTHER THAN UTILITY RUNWAY WITH A NON PRECISION APPROACH HAVING VISIBILITY MINIMUMS GREATER THAN 3/4 MILERunway Category:  OTHER THAN UTILITY RUNWAY WITH A NON PRECISION APPROACH HAVING VISIBILITY MINIMUMS GREATER THAN 3/4 MILE
Declared Distances:  TORA:7300' TODA:7300' ASDA:7300' LDA:7300'Declared Distances:  TORA:7300' TODA:7300' ASDA:7300' LDA:7300'

Runway Identification: 13/31
Length: 9034 ft
Width: 150 ft
Surface: CONCRETE-GOOD CONDITION
Edge lights: High Intensity

Treatment: GROOVED




Runway: 13

Runway: 31
Mag heading:  131°Mag heading:  311°
Rwy Slope:  .40% UpRwy Slope:  -.40% Down
Approach:  ILSApproach:  ILS
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  PRECISION INSTRUMENTMarkings:  PRECISION INSTRUMENT
Marking Condition:  GOODMarking Condition:  GOOD
Arresting Dev:  Arresting Dev:
Lat & Long:  N4355.2  W09230.7Lat. & Long.:  N4354.2  W09229.2
Elev:  1268.3 ft. MSLElev:  1304.1 ft. MSL
TCH:  53 ft. AGLTCH:  51 ft. AGL
Visual Glide Path:  3.00 degreesVisual Glide Path:  3.00 degrees
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  1280.3 feetTouchdown Elev.:  1304.1 feet
Visual Glide Slope:  4-Light PAPI on LEFT side of Runway; OPERATE CONTINUOUSLY.Visual Glide Slope:  4-Light PAPI on LEFT side of Runway; OPERATE CONTINUOUSLY.
RVR Equipment:  TOUCHDOWNRVR Equipment:  TOUCHDOWN; RY 13/31 RVR AVBL DURG ATCT HRS OF OPN ONLY.
RVV Equipment:  YESRVV Equipment:  YES
Approach Lights:  MALSR - 1,400 foot medium intensity approach lighting system with runway alignment indicator lightsApproach Lights:  MALSR - 1,400 foot medium intensity approach lighting system with runway alignment indicator lights
REIL:  NOREIL:  NO
Centerline Lights:  YESCenterline Lights:  YES
Touchdown lights:  YESTouchdown lights:  YES
Runway Category:  PRECISION INSTRUMENT RUNWAYRunway Category:  PRECISION INSTRUMENT RUNWAY
Declared Distances:  TORA:9033' TODA:9033' ASDA:9033' LDA:9033'Declared Distances:  TORA:9033' TODA:9033' ASDA:9033' LDA:9033'

Remarks
  • WHEN ATCT CLSD SNOW REMOVAL EQUIPMENT OPERATORS MONITOR CTAF.
  • WATERFOWL ON & INVOF ARPT.
  • US CUSTOMS AVBL MON-FRI 0830-1700; AFTER HRS & WEEKENDS REQ PRIOR NOTIFICATION; CALL 507-285-5278.

  • Federal Agreements
  • NATIONAL PLAN OF INTEGRATED AIRPORT SYSTEMS (NPIAS)
  • GRANT AGREEMENTS UNDER FAAP/ADAP/AIP
  • ASSURANCES PURSUANT TO TITLE VI, CIVIL RIGHTS ACT OF 1964

  • Airport Inspection Data
    Airport Inspected: FEDERAL - performed by FAA AIRPORTS FIELD PERSONNEL
    Inspection Date: 10/24/2013



    Airport Communications & Frequencies:
    ATIS Frequencies:   Hours(local) of Operation: CONTINUOUS
    120.5
    ROCHESTER Tower Frequencies:   Hours(local) of operation: 0500-2300
    118.3
    257.8
    ROCHESTER Ground Frequencies:
    121.9
    Emergency Frequencies:
    121.5
    243.0
    CTAF Frequency:
    118.300
    Unicom Frequency:
    122.950
    Remarks
  • APCH & DEP SERVICE PROVIDED BY MINNEAPOLIS ARTCC ON FREQS 132.35/307.3 (ROCHESTER RCAG) WHEN ROCHESTER APCH CTL CLSD.
  • ELEV: 1288.0
  • ROCHESTER Primary Approach Frequencies:   Hours(local) of operation: 0500-2300
    119.2(310-129)
    119.8(130-309)
    251.125
    ROCHESTER Primary Departure Frequencies:   Hours(local) of operation: 0500-2300
    119.2(310-129)
    119.8(130-309)
    251.125
    91/33/105
