Airport and FBO information for KMYF / MYF

KMYF Airport/FBO Info New Airport ID: Find by Airport or City Name:

KMYF Airport:   MONTGOMERY FIELD       SAN DIEGO       CA   Time Zone: Pacific  Lat: N 3248.9     Long: W 11708.4    Elev: 427     Var: -14  Longest Runway: 4577 Clr Del: 123.72       Dept. ATIS: 126.9     Arr. ATIS: 126.9     AWOS: 126.9   Ground: 118.22     Tower: 119.2/125.7

FBO & Flight Services info for KMYF:      FBOs: Update your Fuel Prices Crownair offers customers Quality Air BP Fuel and professional Line Services including: 100LL (AvGas) from our Truck, or our 24/7 Self Service Fuel Island, Jet A with/without Prist from Truck, Hertz Rental Cars, Hotel Reservations, Catering, Lavatory Services, Flt Planning, and Comfortable lounge with Snack/Soda Machines, Ice, Coffee, Microwave, TV with VCR and Shower. Maint. #888-276-9624 Ph: 858-292-1181    website   Fax: 858-277-1937 Freq: 123.5                       Service Jet 100LL 80/87 MoGas Fuel Avail: Hours: 7 days a week 0530-2100, late call avaible with prior notification. 24 hr self serve Avgas. Full 5.24 6.49     Last Update: 04/26/2013 16:56 PRICES GUARANTEED by FBO. Self   6.19     Misc. Info:Jet Fuel Discount - $.05 for every 100 gal purchased (max discount $.20/gal). Mx/Avionics available Pilot Lounge, Aircraft Maintenance, PAX terminal, Hangar Space, Rental Cars, Ramp Parking. Fuel Volume Discounts on Jet purchases over 250 gallons and AVGas over 50 gallons! Ph: 858-277-0310    website   Fax: 858-277-0678 Freq: 122.85                               Service Jet 100LL 80/87 MoGas Fuel Avail: 6:30 AM - 8:30 PM, after hours call out fee Full 4.98 6.29     Last Update: 04/30/2013 18:24 PRICES GUARANTEED by FBO. Self         Misc. Info:Jet discount $.20 over 250 gal, Avgas discount $.20 over 50 gal NATIONAL AIR Ph: 858-279-4595 Fax: 858-279-2960 Freq: 123.3 AWOS Ph: 858-576-4337 - -   ATIS Ph: 858-277-3075 - -   NOISE RESTRICT Ph: 858-573-1436 - -   If you are an FBO, call 1-203-262-8900 to update your info or email: Support@FltPlan.com

Runway & Approach Info for KMYF   Rwy       Length     Land Dist Avail**   Approach*        Rwy   Length Land Dist Avail**  Approach*  05 3400x150   3011'                23   3400x150   3400'             10L 4577x150   4577'                28R   4577x150   3401'           ILS/DME  111.70 - 281°   10R 3401x60   3401'                28L   3401x60   3401'              * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown** For any Declared Landing Distance Available, please see A/FD or Approach plates Runway Weight Capability   (lbs.)   more info on Runway Weight Capability Runway ID Single Wheel Double Wheel Double Tandem Wheel Dual Double Wheel 05/23 12,000 N/A N/A N/A 10L/28R 12,000 N/A N/A N/A 10R/28L 12,000 N/A N/A N/A H1 N/A N/A N/A N/A H2 N/A N/A N/A N/A H3 N/A N/A N/A N/A These numbers are Advisory and are not limits.   The Airport Manager should have more accurate Weight Limits Please email Support@FltPlan.com for further information.

Approach Charts for KMYF   View Approaches for KMYF (for fast viewing) ILS OR LOC RWY 28R RNAV (GPS) RWY 28R AIRPORT DIAGRAM       View Approaches for KMYF (PDF format for printing.)

Current Weather/Notams    (Metars, TAFs, Notams, NWS Forecast, PIREPS, and nearby weather) Sponsored by:

Customs Information             ( Send updates to Support@FltPlan.com ) Customs Not Available

Click here to view A/FD (Airport/Facility Directory) for MONTGOMERY FIELD

A/FD Legend

Database effective date: 05/02/2013

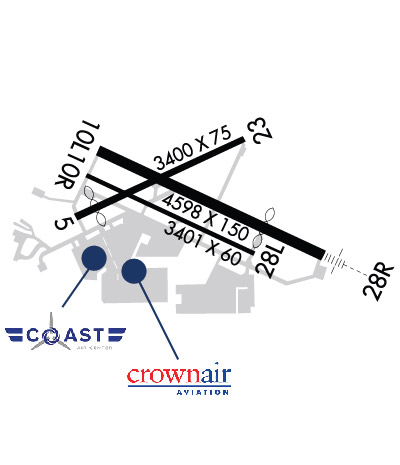

Airport Diagram might not be current. Facility Name: MONTGOMERY FIELD City Name: SAN DIEGO County: SAN DIEGO State abbrev: CA State Name: CALIFORNIA     Ownership: PUBLICLY OWNED Use: OPEN TO THE PUBLIC Owner's Name: CITY OF SAN DIEGO Address: 3750 JOHN J MONTGOMERY DR   SAN DIEGO, CA 92123 Owner's Phone: 858-573-1440     Manager's Name: ERNIE GESELL Address: 3750 JOHN J MONTGOMERY DR   SAN DIEGO, CA 92123 Phone: 858-573-1440; MGR - EGESELL@SANDIEGO.GOV ARP OPNS - BILL DALBY - WDALBY@SANDIEGO.GOV     FAA Region: WESTERN-PACIFIC FAA Field Office: LAX

2006- Photo courtesy of George Kovacevic Click here for full scale & interactive Sectional view of KMYF

Sunrise / Sunset times for:  MONTGOMERY FIELD
Date: Sunrise Sunset 05/23/13 Thursday 5:45 19:46 05/24/13 Friday 5:44 19:47 05/25/13 Saturday 5:44 19:47 05/26/13 Sunday 5:43 19:48 05/27/13 Monday 5:43 19:49 05/28/13 Tuesday 5:43 19:49 05/29/13 Wednesday 5:42 19:50	:	Date: Sunrise Sunset 05/30/13 Thursday 5:42 19:50 05/31/13 Friday 5:42 19:51 06/01/13 Saturday 5:41 19:52 06/02/13 Sunday 5:41 19:52 06/03/13 Monday 5:41 19:53 06/04/13 Tuesday 5:41 19:53 06/05/13 Wednesday 5:40 19:54

Airport Facilities Airport Attendance Schedule: M-F 0600-1800 Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS) Airport Lighting Schedule: ATC CTL. WHEN ATCT CLSD MIRL RY 10L/28R OPER CONTINUOUSLY. WHEN ATCT CLSD ACTVT MALSR RY 28R; VASI RYS 10L & 28R FREQ - 119.2. Airport Storage Available: Tie Downs Extra Services Available: Air Freight, Air Ambulance, Avionics, Cargo Handling, Charter, Flight Instruction, Aircraft Rental, Aircraft Sales, Annual Surveying Wind Indicator: YES - (lighted) Control Tower: YES CTAF Frequency: 119.200 Unicom Frequency: 122.950 Rotating Beacon Color: CLEAR-GREEN (Light Land Airport) Segmented Circle: YES Landing Fee: NO

Airport Services Type of Fuel Available: Grade 100LL, JET A (freeze point -40C) Airframe Repair Service: MAJOR Power Plant Repair Service: MAJOR

Geographic Data Latitude: N3248.9   Longitude: W11708.4  (ESTIMATED) Arpt Elevation: 427ft (SURVEYED) Magnetic Variation: 14E 6 miles N of SAN DIEGO Traffic Pattern Altitude: TPA RWY 10R/28L AND 05/23 SINGLE ENG 1000' & MULTI ENG/TURBO POWERED 1600'. TPA RWY 10L/28R SINGLE ENG 800' AND MULTI ENG/TURBO POWERED 1600'. Sectional Chart: LOS ANGELES

Aircraft Data Operations (reported) Yearly Avg. Daily General Aviation transient: 91756 251 General Aviation Local: 88390 242 Air Taxi: 2735 7 Commerical: 0 0 Commuter: 0 0 Military: 482 1 Aircraft based on Field General Aviation Singles: 430 General Aviation Multi: 52 Jet Aircraft: 10 General Aviation Helicopters: 12 Military Aircraft: 0 Gliders: 1 Ultralights: 0

FAA Services FSS on field: NO FSS tie-in: SAN DIEGO FSS Phone: 1-800-WX-BRIEF Who issues Notams: MYF Notam D service at airport: YES ARTCC Name: LOS ANGELES     Federal Status Airport Certification: Aircraft Rescue & Firefighting Index: None Airport of Entry: No Custom Landing Rights: No Joint Civil/Military: No Military Landing rights: YES

Runway Identification: 05/23Length: 3400 ft Width: 150 ft Surface: ASPHALT-FAIR CONDITION Edge lights:   Runway: 05   Runway: 23 Mag heading:  51° Mag heading:  231° Rwy Slope:  .29% Up Rwy Slope:  -.29% Down Approach:   Approach:   Pattern:  Left Traffic Pattern:  Left Traffic Markings:  BASIC Markings:  BASIC Marking Condition:  GOOD Marking Condition:  GOOD Arresting Dev:   Arresting Dev:   Lat & Long:  N3248.9  W11708.8 Lat. & Long.:  N3249.1  W11708.2 Elev:  415.7 ft. MSL Elev:  425.4 ft. MSL TCH:   TCH:   Visual Glide Path:   Visual Glide Path:   Displaced Threshold:  389 feet Displaced Threshold:  No Touchdown Zone:  YES Touchdown Zone:  YES Touchdown Elev.:  425.4 feet Touchdown Elev.:  425.4 feet Visual Glide Slope:   Visual Glide Slope:   RVR Equipment:   RVR Equipment:   RVV Equipment:  NO RVV Equipment:  NO Approach Lights:   Approach Lights:   REIL:  NO REIL:  NO Centerline Lights:  NO Centerline Lights:  NO Touchdown lights:  NO Touchdown lights:  NO Runway Category:  Utility Runway with a Visual Approach Runway Category:  Utility Runway with a Visual Approach Declared Distances:   Declared Distances:   Obstructions:  PLINE Obstructions:  TREE Marked:  MARKED and LIGHTED Marked:  NOT Marked/Lighted Clearance slope:  25:1; 30:1 APCH SLOPE TO DSPLCD THR. Clearance slope:  30:1 Obstruction height:  118 feet AGL Obstruction height:  40 feet AGL Dist. from runway:  3200 feet Dist. from runway:  1400 feet Centerline offset:  150 left of centerline Centerline offset:  60 feet left of centerline Comments:   Comments:

Runway Identification: 10L/28RLength: 4577 ft Width: 150 ft Surface: ASPHALT-GOOD CONDITION Edge lights: Medium Intensity Treatment: RUBBERIZED FRICTION SEAL COAT   Runway: 10L   Runway: 28R Mag heading:  101° Mag heading:  281° Rwy Slope:  .30% Up Rwy Slope:  -.30% Down Approach:   Approach:  ILS/DME Pattern:  Left Traffic Pattern:  Right Traffic Markings:  NONPRECISION INSTRUMENT Markings:  PRECISION INSTRUMENT Marking Condition:  GOOD Marking Condition:  GOOD Arresting Dev:   Arresting Dev:   Lat & Long:  N3249.1  W11708.7 Lat. & Long.:  N3248.8  W11707.9 Elev:  413.7 ft. MSL Elev:  427.3 ft. MSL TCH:  32 ft. AGL TCH:  42 ft. AGL Visual Glide Path:  3.00 degrees Visual Glide Path:  3.00 degrees Displaced Threshold:  No Displaced Threshold:  1176 feet Touchdown Zone:  YES Touchdown Zone:  YES Touchdown Elev.:  423.0 feet Touchdown Elev.:  423.0 feet Visual Glide Slope:  4-BOX VASI ON LEFT SIDE OF RUNWAY Visual Glide Slope:  4-BOX VASI ON LEFT SIDE OF RUNWAY RVR Equipment:   RVR Equipment:   RVV Equipment:  NO RVV Equipment:  NO Approach Lights:   Approach Lights:  MALSR - 1,400 foot medium intensity approach lighting system with runway alignment indicator lights REIL:  NO REIL:  NO Centerline Lights:  NO Centerline Lights:  NO Touchdown lights:  NO Touchdown lights:  NO Runway Category:  OTHER THAN UTILITY RUNWAY WITH A VISUAL APPROACH Runway Category:  PRECISION INSTRUMENT RUNWAY Declared Distances:   Declared Distances:   Obstructions:  TREE Obstructions:   Marked:  NOT Marked/Lighted Marked:   Clearance slope:  10:1 Clearance slope:  50:1; 50:1 APCH SLOPE TO DSPLCD THLD. Obstruction height:  75 feet AGL Obstruction height:   Dist. from runway:  1000 feet Dist. from runway:   Centerline offset:   Centerline offset:   Comments:   Comments:

Runway Identification: 10R/28LLength: 3401 ft Width: 60 ft Surface: ASPHALT-GOOD CONDITION Edge lights: Treatment: RUBBERIZED FRICTION SEAL COAT   Runway: 10R   Runway: 28L Mag heading:  101° Mag heading:  281° Rwy Slope:  .21% Up Rwy Slope:  -.21% Down Approach:   Approach:   Pattern:  Right Traffic Pattern:  Left Traffic Markings:  BASIC Markings:  BASIC Marking Condition:  GOOD Marking Condition:  GOOD Arresting Dev:   Arresting Dev:   Lat & Long:  N3249.0  W11708.7 Lat. & Long.:  N3248.8  W11708.1 Elev:  414.1 ft. MSL Elev:  421.2 ft. MSL TCH:   TCH:   Visual Glide Path:   Visual Glide Path:   Displaced Threshold:  No Displaced Threshold:  No Touchdown Zone:  YES Touchdown Zone:  YES Touchdown Elev.:  420.6 feet Touchdown Elev.:  421.2 feet Visual Glide Slope:   Visual Glide Slope:   RVR Equipment:   RVR Equipment:   RVV Equipment:  NO RVV Equipment:  NO Approach Lights:   Approach Lights:   REIL:  NO REIL:  YES Centerline Lights:  NO Centerline Lights:  NO Touchdown lights:  NO Touchdown lights:  NO Runway Category:  Utility Runway with a Visual Approach Runway Category:  Utility Runway with a Visual Approach Declared Distances:   Declared Distances:   Obstructions:  TREE Obstructions:  TREE Marked:  NOT Marked/Lighted Marked:  MARKED Clearance slope:  17:1 Clearance slope:  22:1 Obstruction height:  45 feet AGL Obstruction height:  70 feet AGL Dist. from runway:  1000 feet Dist. from runway:  1750 feet Centerline offset:   Centerline offset:  280 feet left of centerline Comments:   Comments:

Runway Identification: H1 HELIPADLength: 100 ft Width: 100 ft Surface: ASPHALT-GOOD CONDITION Edge lights:

Runway Identification: H2 HELIPADLength: 48 ft Width: 48 ft Surface: ASPHALT-GOOD CONDITION Edge lights:

Runway Identification: H3 HELIPADLength: 48 ft Width: 48 ft Surface: ASPHALT-GOOD CONDITION Edge lights:

Remarks THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY. BE ALERT HVY ACFT ACTIVITY IN THE VICINITY OF LAKE MURRAY & MT SOLEDAD. PILOTS ARE URGED TO BE VIGILANT FOR OTHER ACFT IN THESE AREAS & TO CTC THE TWR EARLY ENOUGH FOR TIMELY TFC ADVISORIES IF PROCEDING EAST BOUND ADVISE TWR OF DESTINATION ARPT. ARPT USE RESTRICTED BY AMGR TO ACFT HAVING A MAXIMUM CERTIFICATED GROSS TKOF WGT OF 20,000 LBS OR LESS. OVERWEIGHT ACFT SUBJECT TO FINES. TOUCH AND GO OPNS ARE PROHIBITED 2100-0630. INTERSECTION TKOFS AND STOP AND GO'S ARE PROHIBITED AT ALL TIMES. PRACTICE LOW APPROACHES ARE PROHIBITED 2330-0630. SIMULATED ENGINE FAILURES ARE PROHIBITED OVER RESIDENTIAL AREAS. SIMULATED ENGINE FAILURES ARE PROHIBITED OVER RESIDENTIAL AREAS. NO JET TOUCH AND GO OPNS. FOR NOISE ABATEMENT REGULATIONS CONTACT THE NOISE ABATEMENT OFFICE AT 858-573-1436. ACFT WITH HIGH NOISE LEVELS ARE REQUESTED TO USE RY 10L/28R LDG FEES FOR OPS BY PART 135 CERTIFIED AIRCRAFT. BE ALERT TO MILITARY JET ACFT INVOF OF ARPT & 4.7 NM NW OF ARPT BEARING 312 INVOF MISSION BAY VORTAC. EXTRM NOISE SENSITIVE AREAS W & S OF ARPT. NOISE MONITORING IN EFFECT. MAX NOISE LMT 2330-0630 70 DB OVER RESIDENTIAL AREAS. MAX NOISE LMT 0630-2330 88 DB. NO PRACTICE LOW APCHS 2330-0630. BE ALERT BIRDS ON AND INVOF ARPT; COYOTE ACTIVITY ON RYS & TWYS. RWY H1 CITYPORT HELIPAD LIMITED TO 20,000 LBS MAX CERTIFICATED GROSS TKOF WEIGHT. RWY H2 MIDPORT HELIPAD LIMITED TO 6,000 LBS MAXIMUM CERTIFICATED GROSS TKOF WEIGHT. NO MIDPORT OVERNIGHT PARKING WITHOUT PRIOR PERMISSION FM ARPT OPNS CTC 858-573-1440.

Federal Agreements NATIONAL PLAN OF INTEGRATED AIRPORT SYSTEMS (NPIAS) GRANT AGREEMENTS UNDER FAAP/ADAP/AIP ASSURANCES PURSUANT TO TITLE VI, CIVIL RIGHTS ACT OF 1964

Airport Inspection Data Airport Inspected: STATE - performed by STATE AERONAUTICAL PERSONNEL Inspection Date: 02/28/2013

Airport Communications & Frequencies: ATIS Frequencies:   Hours(local) of Operation: CONTINUOUS 126.9 MONTGOMERY Tower Frequencies:   Hours(local) of operation: 0600-2100    119.2 125.7 269.4 MONTGOMERY Ground Frequencies: 118.22 Clearance Delivery Frequencies: 123.725 CTAF Frequency: 119.200 Unicom Frequency: 122.950 Remarks FREQ 125.7 ALSO USED FOR TOUCH AND GO LANDINGS RWY 10L-28R. FOR CLNC DEL WHEN ATCT CLSD CALL SOCAL APCH (800) 448-3724. SOCAL Primary Approach Frequencies:   124.35 279.625 SOCAL Primary Departure Frequencies:   119.6 363.1

138/66/84
