Airport and FBO information for KLLU / LLU
KLLU Airport/FBO InfoClick here for more info on on FltPlan Go!
New Airport ID:
Find by Airport or City Name:
KLLU Airport:
LAMAR MUNI       LAMAR       MO
  Time Zone: Central
Lat: N 3729.2     Long: W 09418.7    Elev: 1010     Var: -02  Longest Runway: 4001
       CTAF: 122.9

FBO & Flight Services info for KLLU:      FBOs: Update your Fuel Prices


CITY OF LAMARPh: 417-682-5554
-
-


If you are an FBO, call 1-203-262-8900 to update your info or email: Support@FltPlan.com



 Runway & Approach Info for KLLU
  Rwy
    Length
Land Dist Avail**
  Approach*
    Rwy
Length
Land Dist Avail**
 Approach*
03
2902x60  2902'


21
  2902x60  2902'

17
4001x75  4001'


35
  4001x75  4001'

 * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown
** For any Declared Landing Distance Available, please see A/FD or Approach plates


 Runway Weight Capability   (lbs.)   more info on Runway Weight Capability
Runway IDSingle WheelDouble WheelDouble Tandem WheelDual Double Wheel
03/21N/AN/AN/AN/A
17/35N/AN/AN/AN/A
These numbers are Advisory and are not limits.   The Airport Manager should have more accurate Weight Limits
Please email Support@FltPlan.com for further information.


 Approach Charts for KLLU
  View Approaches



 Current Weather/Notams    (Metars, TAFs, Notams, NWS Forecast, PIREPS, and nearby weather)


 Customs Information             ( Send updates to Support@FltPlan.com )
Customs Not Available


 A/FD
Click here to view A/FD (Airport/Facility Directory) for LAMAR MUNIA/FD Legend



Database effective date: 09/18/2014

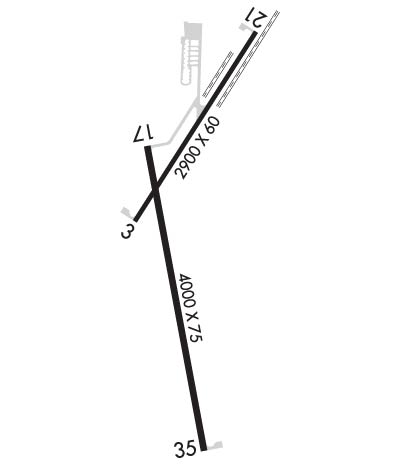

Airport Diagram of KLLU
Airport Diagram might not be current.

Facility Name: LAMAR MUNI
City Name: LAMAR
County: BARTON
State abbrev: MO
State Name: MISSOURI

Ownership: PUBLICLY OWNED
Use: OPEN TO THE PUBLIC
Owner's Name: CITY OF LAMAR
Address: 1104 BROADWAY
 LAMAR, MO 64759
Owner's Phone: 417 682-5554

Manager's Name: LYNN CALTON
Address: 1104 BROADWAY
 LAMAR, MO 64759
Phone: 417-682-5554

FAA Region: CENTRAL
FAA Field Office: NONE
Click here to submit your photo
Click here for full scale & interactive Sectional view of KLLU
Click here for full scale & interactive Sectional view of KLLU






Sunrise / Sunset times for:  LAMAR MUNI
Date: Sunrise Sunset
09/22/14 Monday7:0519:15
09/23/14 Tuesday7:0619:13
09/24/14 Wednesday7:0719:11
09/25/14 Thursday7:0719:10
09/26/14 Friday7:0819:08
09/27/14 Saturday7:0919:07
09/28/14 Sunday7:1019:05
 :
Date: Sunrise Sunset
09/29/14 Monday7:1119:04
09/30/14 Tuesday7:1219:02
10/01/14 Wednesday7:1319:01
10/02/14 Thursday7:1318:59
10/03/14 Friday7:1418:58
10/04/14 Saturday7:1518:56
10/05/14 Sunday7:1618:55

 Airport Facilities
Airport Attendance Schedule: UNATTENDED
Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS)
Airport Lighting Schedule: ACTVT MIRL RYS 03/21 & 17/35, PAPI RYS 17 & 35 - CTAF.
Airport Storage Available: Tie Downs
Extra Services Available: Flight Instruction, Aircraft Rental
Wind Indicator: YES - (lighted)
Control Tower: NO
CTAF Frequency: 122.900
Unicom Frequency:
Rotating Beacon Color: CLEAR-GREEN (Light Land Airport)
Segmented Circle: YES
Landing Fee: NO

Airport Services
Type of Fuel Available: Grade 100LL; FOR FUEL CTC NUMBER POSTED AT FUELING AREA.
Airframe Repair Service: None
Power Plant Repair Service: NONE

Geographic Data
Latitude: N3729.2   Longitude: W09418.7  (ESTIMATED)
Arpt Elevation: 1009ft (SURVEYED)
Magnetic Variation: 02E
2 miles SW of LAMAR
Traffic Pattern Altitude:
Sectional Chart: KANSAS CITY

  Aircraft Data
Operations (reported)
YearlyAvg. Daily
General Aviation transient: 18005
General Aviation Local: 16004
Air Taxi: 3001
Commerical: 00
Commuter: 00
Military: 200
Aircraft based on Field
General Aviation Singles: 8
General Aviation Multi: 0
Jet Aircraft: 0
General Aviation Helicopters: 2
Military Aircraft: 0
Gliders: 0
Ultralights: 3; ULTRALIGHT ACTIVITY ON & INVOF ARPT.

  FAA Services
FSS on field: NO
FSS tie-in:COLUMBIA
FSS Phone: 1-800-WX-BRIEF
Who issues Notams: COU
Notam D service at airport: YES
ARTCC Name: KANSAS CITY

  Federal Status
Airport Certification:
Aircraft Rescue & Firefighting Index: None
Airport of Entry: No
Custom Landing Rights: No
Joint Civil/Military: No
Military Landing rights: YES

Runway Identification: 03/21
Length: 2902 ft
Width: 60 ft
Surface: ASPHALT-GOOD CONDITION
Edge lights: Medium Intensity

Treatment: AGGREGATE FRICTION SEAL COAT




Runway: 03

Runway: 21
Mag heading:  31°Mag heading:  211°
Rwy Slope:  -.23% DownRwy Slope:  .23% Up
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  NONPRECISION INSTRUMENTMarkings:  NONPRECISION INSTRUMENT
Marking Condition:  FAIRMarking Condition:  FAIR
Arresting Dev:  Arresting Dev:
Lat & Long:  N3729.2  W09418.9Lat. & Long.:  N3729.6  W09418.5
Elev:  1004.5 ft. MSLElev:  997.8 ft. MSL
TCH:  TCH:
Visual Glide Path:  Visual Glide Path:
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  1006.9 feetTouchdown Elev.:  1006.9 feet
Visual Glide Slope:  Visual Glide Slope:
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  NOREIL:  NO
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  UTILITY RUNWAY WITH A NONPRECISION APPROACHRunway Category:  Utility Runway with a Visual Approach
Declared Distances:  Declared Distances:
Obstructions:  PLINEObstructions:  TREES
Marked:  MARKEDMarked:  NOT Marked/Lighted
Clearance slope:  25:1Clearance slope:  20:1
Obstruction height:  42 feet AGLObstruction height:  37 feet AGL
Dist. from runway:  1274 feetDist. from runway:  962 feet
Centerline offset:  Centerline offset:  144 feet right of centerline
Comments:  Comments:

Runway Identification: 17/35
Length: 4001 ft
Width: 75 ft
Surface: CONCRETE
Edge lights: Medium Intensity




Runway: 17

Runway: 35
Mag heading:  167°Mag heading:  347°
Rwy Slope:  -.49% DownRwy Slope:  .49% Up
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  Markings:
Marking Condition:  Marking Condition:
Arresting Dev:  Arresting Dev:
Lat & Long:  N3729.3  W09418.8Lat. & Long.:  N3728.7  W09418.7
Elev:  1009.7 ft. MSLElev:  990.0 ft. MSL
TCH:  43 ft. AGLTCH:  42 ft. AGL
Visual Glide Path:  3.00 degreesVisual Glide Path:  3.00 degrees
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  1009.7 feetTouchdown Elev.:  1004.7 feet
Visual Glide Slope:  4-Light PAPI on LEFT side of RunwayVisual Glide Slope:  4-Light PAPI on LEFT side of Runway
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  YESREIL:  YES
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  Runway Category:
Declared Distances:  Declared Distances:

Remarks
  • RWY 35 N

  • Federal Agreements
  • NATIONAL PLAN OF INTEGRATED AIRPORT SYSTEMS (NPIAS)
  • GRANT AGREEMENTS UNDER FAAP/ADAP/AIP
  • ASSURANCES PURSUANT TO TITLE VI, CIVIL RIGHTS ACT OF 1964

  • Airport Inspection Data
    Airport Inspected: STATE - performed by STATE AERONAUTICAL PERSONNEL
    Inspection Date: 07/26/2011



    Airport Communications & Frequencies:
    CTAF Frequency:
    122.900
    Remarks
  • APCH/DEP SERVICE PROVIDED BY KANSAS CITY ARTCC ON FREQ 128.6/282.325 (EDNA RCAG).
  • //1
