     KJGG Airport/FBO Info


New Airport ID:

Find by Airport or City Name:
KJGG Airport:
WILLIAMSBURG-JAMESTOWN       WILLIAMSBURG       VA
  Time Zone: Eastern
Lat: N 3714.4     Long: W 07643.0    Elev: 49     Var: +11  Longest Runway: 3204
    AWOS: 120.62        CTAF: 122.8

FBO & Flight Services info for KJGG:      FBOs: Update your Fuel Prices


WILLIAMSBURG-JAMEPh: 757-229-9256 Fax: 757-229-3085 Freq: 122.8
Service
Jet
100LL
80/87
MoGas
Fuel Avail: JET A INCLUDES PRIST.
Full4.954.95    Last Update: 09/21/2016 21:37
PRICES GUARANTEED by FBO.
Self
 Address: 100 MARCLAY DRIVE   WILLIAMSBURG, VA 23185

ASOSPh: 757-220-8810
-
Freq: 120.62


 If you are an FBO, call 1-203-262-8900 to update your info or email: Support@FltPlan.com
Advertise your FBO on FltPlan.com


 Runway & Approach Info for KJGG
  Rwy
    Length
Land Dist Avail**
  Approach*
    Rwy
Length
Land Dist Avail**
 Approach*
13
3204x60  3204'


31
  3204x60  3204'

 * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown
** For any Declared Landing Distance Available, please see A/FD or Approach plates


 Runway Weight Capability   (lbs.)   more info on Runway Weight Capability
Runway IDSingle WheelDouble WheelDouble Tandem WheelDual Double Wheel
13/3112,500N/AN/AN/A
H1N/AN/AN/AN/A
These numbers are Advisory and are not limits.   The Airport Manager should have more accurate Weight Limits
Please email Support@FltPlan.com for further information.


 Approach Charts for KJGG
  View Approaches



 Current Weather/Notams    (Metars, TAFs, Notams, NWS Forecast, PIREPS, and nearby weather)


 Customs Information             ( Send updates to Support@FltPlan.com )
Customs Not Available


 A/FD
Click here to view A/FD (Airport/Facility Directory) for WILLIAMSBURG-JAMESTOWNA/FD Legend



Database effective date: 09/15/2016

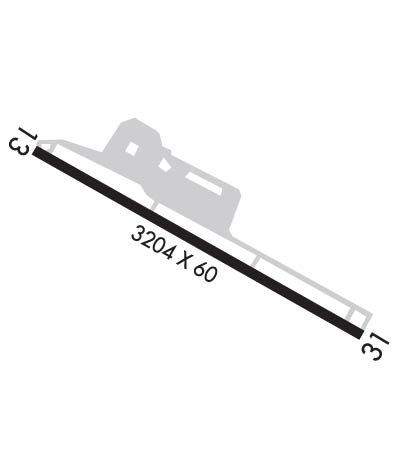

Airport Diagram of KJGG
Airport Diagram might not be current.

Facility Name: WILLIAMSBURG-JAMESTOWN
City Name: WILLIAMSBURG
County: JAMES CITY
State abbrev: VA
State Name: VIRGINIA

Ownership: PRIVATELY OWNED
Use: OPEN TO THE PUBLIC
Owner's Name: WILLIAMSBURG-JAMESTOWN ARPT.
Address: 100 MARCLAY RD
 WILLIAMSBURG, VA 23185
Owner's Phone: 757-229-9256

Manager's Name: LARRY T. WALTRIP
Address: 100 MARCLAY RD
 WILLIAMSBURG, VA 23185
Phone: 757-229-9256

FAA Region: EASTERN
FAA Field Office: DCA
Click here to submit your photo
Click here for full scale & interactive Sectional view of KJGG
Click here for full scale & interactive Sectional view of KJGG






Sunrise / Sunset times for:  WILLIAMSBURG-JAMESTOWN
Date: Sunrise Sunset
09/24/16 Saturday6:5719:00
09/25/16 Sunday6:5818:58
09/26/16 Monday6:5918:57
09/27/16 Tuesday6:5918:55
09/28/16 Wednesday7:0018:53
09/29/16 Thursday7:0118:52
09/30/16 Friday7:0218:50
 :
Date: Sunrise Sunset
10/01/16 Saturday7:0318:49
10/02/16 Sunday7:0418:47
10/03/16 Monday7:0518:46
10/04/16 Tuesday7:0618:45
10/05/16 Wednesday7:0618:43
10/06/16 Thursday7:0718:42
10/07/16 Friday7:0818:40

 Airport Facilities
Airport Attendance Schedule: 7 Days A Week 0700-DARK; ARPT UNATTND CHRISTMAS DAY - ATTND BY REQUEST.
Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS)
Airport Lighting Schedule: DUSK-DAWN. ACTVT MIRL RY 13/31; PERIMETER LGTS RY H1; REIL & APAP RYS 13 & 31 - CTAF.
Airport Storage Available: Tie Downs, Hanger
Extra Services Available: Flight Instruction, Aircraft Rental
Wind Indicator: YES - (lighted)
Control Tower: NO
CTAF Frequency: 122.800
Unicom Frequency: 122.800
Rotating Beacon Color: CLEAR-GREEN (Light Land Airport)
Segmented Circle: NO
Landing Fee: NO; LANDING FEE FOR COML & CHTR ACFT.

Airport Services
Type of Fuel Available: Grade 100LL, JET A (freeze point -40C)
Airframe Repair Service: MAJOR
Power Plant Repair Service: MAJOR

Geographic Data
Latitude: N3714.4   Longitude: W07643.0  (ESTIMATED)
Arpt Elevation: 49ft (SURVEYED)
Magnetic Variation: 11W
3 miles SW of WILLIAMSBURG
Traffic Pattern Altitude: 800
Sectional Chart: WASHINGTON

  Aircraft Data
Operations (reported)
YearlyAvg. Daily
General Aviation transient: 1203333
General Aviation Local: 1673246
Air Taxi: 30098
Commerical: 00
Commuter: 00
Military: 2171
Aircraft based on Field
General Aviation Singles: 58
General Aviation Multi: 1
Jet Aircraft: 0
General Aviation Helicopters: 0
Military Aircraft: 0
Gliders: 0
Ultralights: 0

  FAA Services
FSS on field: NO
FSS tie-in:LEESBURG
FSS Phone: 1-800-WX-BRIEF
Who issues Notams: JGG
Notam D service at airport: YES
ARTCC Name: WASHINGTON

  Federal Status
Airport Certification:
Aircraft Rescue & Firefighting Index: None
Airport of Entry: No
Custom Landing Rights: No
Joint Civil/Military: No
Military Landing rights: No

Runway Identification: 13/31
Length: 3204 ft
Width: 60 ft
Surface: ASPHALT-GOOD CONDITION
Edge lights: Medium Intensity




Runway: 13

Runway: 31
Mag heading:  131°Mag heading:  311°
Rwy Slope:  -.81% DownRwy Slope:  .81% Up
Approach:  Approach:
Pattern:  Right TrafficPattern:  Left Traffic
Markings:  BASICMarkings:  BASIC
Marking Condition:  GOODMarking Condition:  GOOD
Arresting Dev:  Arresting Dev:
Lat & Long:  N3714.5  W07643.3Lat. & Long.:  N3714.2  W07642.7
Elev:  48.0 ft. MSLElev:  22.0 ft. MSL
TCH:  TCH:
Visual Glide Path:  Visual Glide Path:
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  48.0 feetTouchdown Elev.:  48.0 feet
Visual Glide Slope:  SYSTEM OF PANELS ON LEFT SIDE OF RUNWAY (May NOT Be Lighted); PANELS NEED REPAIR.Visual Glide Slope:  SYSTEM OF PANELS ON LEFT SIDE OF RUNWAY (May NOT Be Lighted); PANELS NEED REPAIR.
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  YESREIL:  YES
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  Runway with a Visual ApproachRunway Category:  Runway with a Visual Approach
Declared Distances:  Declared Distances:
Obstructions:  TREESObstructions:  TREES
Marked:  NOT Marked/LightedMarked:  NOT Marked/Lighted
Clearance slope:  16:1Clearance slope:  15:1
Obstruction height:  108 feet AGLObstruction height:  109 feet AGL
Dist. from runway:  2016 feetDist. from runway:  1850 feet
Centerline offset:  269 right of centerlineCenterline offset:  273 feet right of centerline
Comments:  BRUSH APRX 52 FT FM THR, 70 R OF CNTRLN, 4 FT ABV RWY END.Comments:  BRUSH APPROX 130 FT FM THRESHOLD, AROUND PENINSULA EDGE, 4 FT ABOVE RY END.

Runway Identification: H1 HELIPAD
Length: 60 ft
Width: 60 ft
Surface: CONCRETE-GOOD CONDITION
Edge lights:


Remarks
  • THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
  • DEER & BIRDS ON & INVOF ARPT.
  • NOISE ABATEMENT PROCEDURES IN EFFECT; CTC AMGR 757-229-9256. RY 31 DEP TURN LEFT HEADING 270 DEG TO AVOID SCHOOL 3500 FT OFF RY END.
  • GCO AVBL ON FREQ 135.075 THRU ORF CLEARANCE DELIVERY. 4 CLICKS ORF, 5 LEESBURG RADIO (CLICK SLOWLY).
  • HELIPAD CLSD CT 122.8 FOR LDG INSTRUCTIONS.
  • PAEW ADJECENT TO RY 13/31.
  • TWY TO RWY 31, EAST OF TRML, PAVEMENT POOR & MARKINGS FAIR.
  • RAMP IN FRONT, AND EAST OF, TRML IN POOR COND.

  • Airport Inspection Data
    Airport Inspected: STATE - performed by STATE AERONAUTICAL PERSONNEL
    Inspection Date: 07/13/2016



    Airport Communications & Frequencies:
    CTAF Frequency:
    122.800
    Unicom Frequency:
    122.800
    NORFOLK Primary Approach Frequencies:
    119.45
    360.6
    NORFOLK Primary Departure Frequencies:
    119.45
    360.6
