KJCT Airport:
KIMBLE COUNTY       JUNCTION       TX
  Time Zone: Central
Lat: N 3030.7     Long: W 09945.8    Elev: 1754     Var: -08  Longest Runway: 5004
    AWOS: 119.27        CTAF: 122.8

FBO & Flight Services info for KJCT:      FBOs: Update your Fuel Prices


KIMBLE CO ARPTPh: 325-446-2820 Fax: N/A Freq: 122.8
Service
Jet
100LL
80/87
MoGas
Fuel Avail: 24 hours for jet @av. fuel
Full4.49      Last Update: 10/20/2014 20:45
PRICES GUARANTEED by FBO.
Self  5.25

ASOSPh: 325-446-4594
-
Freq: 119.27


If you are an FBO, call 1-203-262-8900 to update your info or email: Support@FltPlan.com



 Runway & Approach Info for KJCT
  Rwy
    Length
Land Dist Avail**
  Approach*
    Rwy
Length
Land Dist Avail**
 Approach*
08
2255x130  2255'


26
  2255x130  2255'

17
5004x75  5004'


35
  5004x75  5004'

 * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown
** For any Declared Landing Distance Available, please see A/FD or Approach plates


 Runway Weight Capability   (lbs.)   more info on Runway Weight Capability
Runway IDSingle WheelDouble WheelDouble Tandem WheelDual Double Wheel
08/26N/AN/AN/AN/A
17/3530,000N/AN/AN/A
These numbers are Advisory and are not limits.   The Airport Manager should have more accurate Weight Limits
Please email Support@FltPlan.com for further information.


 Approach Charts for KJCT
  View Approaches



 Current Weather/Notams    (Metars, TAFs, Notams, NWS Forecast, PIREPS, and nearby weather)


 Customs Information             ( Send updates to Support@FltPlan.com )
Customs Not Available


 A/FD
Click here to view A/FD (Airport/Facility Directory) for KIMBLE COUNTYA/FD Legend



Database effective date: 09/18/2014

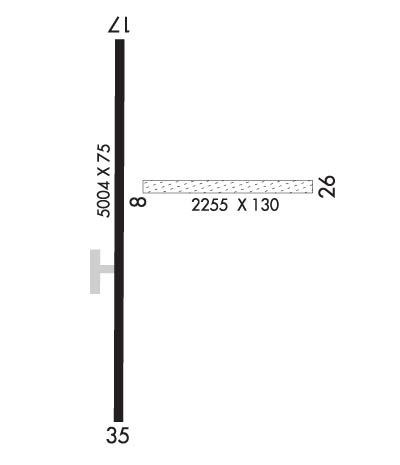

Airport Diagram of KJCT
Airport Diagram might not be current.

Facility Name: KIMBLE COUNTY
City Name: JUNCTION
County: KIMBLE
State abbrev: TX
State Name: TEXAS

Ownership: PUBLICLY OWNED
Use: OPEN TO THE PUBLIC
Owner's Name: KIMBLE COUNTY
Address: KIMBLE COUNTY COURTHOUSE, 501 MAIN
 JUNCTION, TX 76849
Owner's Phone: 325-446-2724

Manager's Name: BILL DAVIS
Address: 635 AIRPORT ROAD, 501 MAIN
 JUNCTION, TX 76849
Phone: 325-446-2820

FAA Region: SOUTHWEST
FAA Field Office: TEX
2007- Photo courtesy of Bill Davis

Click here for full scale & interactive Sectional view of KJCT
Click here for full scale & interactive Sectional view of KJCT






Sunrise / Sunset times for:  KIMBLE COUNTY
Date: Sunrise Sunset
10/30/14 Thursday7:5218:53
10/31/14 Friday7:5318:52
11/01/14 Saturday7:5418:51
11/02/14 Sunday6:5417:51
11/03/14 Monday6:5517:50
11/04/14 Tuesday6:5617:49
11/05/14 Wednesday6:5717:48
 :
Date: Sunrise Sunset
11/06/14 Thursday6:5717:48
11/07/14 Friday6:5817:47
11/08/14 Saturday6:5917:46
11/09/14 Sunday7:0017:46
11/10/14 Monday7:0117:45
11/11/14 Tuesday7:0217:44
11/12/14 Wednesday7:0217:44

 Airport Facilities
Airport Attendance Schedule: CONTINUOUS
Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS)
Airport Lighting Schedule: DUSK-DAWN. MIRL RY 17/35 PRESET LOW INTST, TO INCR INTST ACTVT - CTAF.
Airport Storage Available: Tie Downs
Extra Services Available: NONE
Wind Indicator: YES - (lighted)
Control Tower: NO
CTAF Frequency: 122.800
Unicom Frequency: 122.800
Rotating Beacon Color: CLEAR-GREEN (Light Land Airport)
Segmented Circle: YES
Landing Fee: NO

Airport Services
Type of Fuel Available: Grade 100LL, JET A
Airframe Repair Service: MAJOR
Power Plant Repair Service: MAJOR

Geographic Data
Latitude: N3030.7   Longitude: W09945.8  (ESTIMATED)
Arpt Elevation: 1754ft (SURVEYED)
Magnetic Variation: 08E
1 miles NE of JUNCTION
Traffic Pattern Altitude:
Sectional Chart: SAN ANTONIO

  Aircraft Data
Operations (reported)
YearlyAvg. Daily
General Aviation transient: 30008
General Aviation Local: 20005
Air Taxi: 00
Commerical: 00
Commuter: 00
Military: 1000
Aircraft based on Field
General Aviation Singles: 4
General Aviation Multi: 1
Jet Aircraft: 0
General Aviation Helicopters: 0
Military Aircraft: 0
Gliders: 0
Ultralights: 0

  FAA Services
FSS on field: NO
FSS tie-in:SAN ANGELO
FSS Phone: 1-800-WX-BRIEF
Who issues Notams: JCT
Notam D service at airport: YES
ARTCC Name: HOUSTON

  Federal Status
Airport Certification:
Aircraft Rescue & Firefighting Index: None
Airport of Entry: No
Custom Landing Rights: No
Joint Civil/Military: No
Military Landing rights: YES

Runway Identification: 08/26
Length: 2255 ft
Width: 130 ft
Surface: GRASS-GOOD CONDITION
Edge lights:




Runway: 08

Runway: 26
Mag heading:  84°Mag heading:  264°
Rwy Slope:  -1.02% DownRwy Slope:  1.02% Up
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  Markings:
Marking Condition:  RY 08/26 THLDS MKD WITH WHITE TIRES ACROSS RY ENDS.Marking Condition:
Arresting Dev:  Arresting Dev:
Lat & Long:  N3030.7  W09945.8Lat. & Long.:  N3030.7  W09945.4
Elev:  1721.4 ft. MSLElev:  1698.5 ft. MSL
TCH:  TCH:
Visual Glide Path:  Visual Glide Path:
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  1721.4 feetTouchdown Elev.:  1721.4 feet
Visual Glide Slope:  Visual Glide Slope:
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  NOREIL:  NO
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  Utility Runway with a Visual ApproachRunway Category:  Utility Runway with a Visual Approach
Declared Distances:  Declared Distances:
Obstructions:  Obstructions:  TREES
Marked:  Marked:  NOT Marked/Lighted
Clearance slope:  50:1Clearance slope:  11:1
Obstruction height:  Obstruction height:  35 feet AGL
Dist. from runway:  Dist. from runway:  400 feet
Centerline offset:  Centerline offset:  120 feet right of centerline
Comments:  Comments:

Runway Identification: 17/35
Length: 5004 ft
Width: 75 ft
Surface: ASPHALT-GOOD CONDITION
Edge lights: Medium Intensity




Runway: 17

Runway: 35
Mag heading:  172°Mag heading:  352°
Rwy Slope:  -1.01% DownRwy Slope:  1.01% Up
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  NONPRECISION INSTRUMENTMarkings:  NONPRECISION INSTRUMENT
Marking Condition:  GOODMarking Condition:  GOOD
Arresting Dev:  Arresting Dev:
Lat & Long:  N3031.1  W09945.9Lat. & Long.:  N3030.2  W09945.9
Elev:  1753.6 ft. MSLElev:  1703.2 ft. MSL
TCH:  50 ft. AGLTCH:  45 ft. AGL
Visual Glide Path:  3.50 degreesVisual Glide Path:  3.00 degrees
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  1753.6 feetTouchdown Elev.:  1726.5 feet
Visual Glide Slope:  4-Light PAPI on LEFT side of RunwayVisual Glide Slope:  4-Light PAPI on LEFT side of Runway
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  NOREIL:  NO
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Category:  OTHER THAN UTILITY RUNWAY WITH A NON PRECISION APPROACH HAVING VISIBILITY MINIMUMS GREATER THAN 3/4 MILERunway Category:  OTHER THAN UTILITY RUNWAY WITH A VISUAL APPROACH
Declared Distances:  Declared Distances:
Obstructions:  HILLObstructions:  TREES
Marked:  NOT Marked/LightedMarked:  NOT Marked/Lighted
Clearance slope:  21:1Clearance slope:  34:1
Obstruction height:  200 feet AGLObstruction height:  40 feet AGL
Dist. from runway:  4400 feetDist. from runway:  1560 feet
Centerline offset:  Centerline offset:  215 feet left of centerline
Comments:  Comments:

Remarks
  • PAEW ON TWY AND ADJ RY.
  • FREQUENT MILITARY TRAINING FLIGHTS CONDUCTING LOW APPROACHES TO AIRPORT.

  • Federal Agreements
  • NATIONAL PLAN OF INTEGRATED AIRPORT SYSTEMS (NPIAS)
  • GRANT AGREEMENTS UNDER FAAP/ADAP/AIP
  • ASSURANCES PURSUANT TO TITLE VI, CIVIL RIGHTS ACT OF 1964

  • Airport Inspection Data
    Airport Inspected: STATE - performed by PRIVATE CONTRACT PERSONNEL
    Inspection Date: 01/21/2012



    Airport Communications & Frequencies:
    CTAF Frequency:
    122.800
    Unicom Frequency:
    122.800
    Remarks
  • APCH/DEP SVC PRVDD BY HOUSTON ARTCC ON FREQS 125.75/346.4 (ROCK SPRINGS RCAG).
  • 6/2/4
