Airport and FBO information for KDNV / DNV

KDNV Airport/FBO Info New Airport ID: Find by Airport or City Name:

KDNV Airport:   VERMILION REGIONAL       DANVILLE       IL   Time Zone: Central  Lat: N 4012.0     Long: W 08735.7    Elev: 697     Var: +01  Longest Runway: 6006 Clr Del: 121.7       AWOS: 119.27        CTAF: 122.7

FBO & Flight Services info for KDNV:      FBOs: Update your Fuel Prices The Vermilion Regional Airport offers an outstanding facility with a recently refinished 600092 runway 3-21. It also offers a 400092 runway 16-34. Excellent location near Illinois/Indiana border and conveniently located near Interstate 74. Fueling hours: during regular FBO business hours, plus after hours call-out service (with prior arrangement and/or a callout fee); call FBO for details. Ph: 217-431-1998    website - Fax: 217-431-8989 Freq: 122.7 AWOS Ph: 217-442-4660 - Freq: 119.27   If you are an FBO, call 1-203-262-8900 to update your info or email: Support@FltPlan.com

Runway & Approach Info for KDNV   Rwy       Length     Land Dist Avail**   Approach*        Rwy   Length Land Dist Avail**  Approach*  03 6006x100   6006'                21   6006x100   6006'           ILS  108.50 - 209°   16 3999x100   3999'                34   3999x100   3999'              * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown** For any Declared Landing Distance Available, please see A/FD or Approach plates Runway Weight Capability   (lbs.)   more info on Runway Weight Capability Runway ID Single Wheel Double Wheel Double Tandem Wheel Dual Double Wheel 03/21 50,000 75,000 N/A N/A 16/34 40,000 50,000 N/A N/A These numbers are Advisory and are not limits.   The Airport Manager should have more accurate Weight Limits Please email Support@FltPlan.com for further information.

Approach Charts for KDNV   View Approaches for KDNV (for fast viewing) ILS OR LOC RWY 21 RNAV (GPS) RWY 03 RNAV (GPS) RWY 21 RNAV (GPS) RWY 34 VOR/DME RWY 03 VOR RWY 21       View Approaches for KDNV (PDF format for printing.)

Current Weather/Notams    (Metars, TAFs, Notams, NWS Forecast, PIREPS, and nearby weather)

Customs Information             ( Send updates to Support@FltPlan.com ) Customs Not Available

Click here to view A/FD (Airport/Facility Directory) for VERMILION REGIONAL

A/FD Legend

Database effective date: 05/02/2013

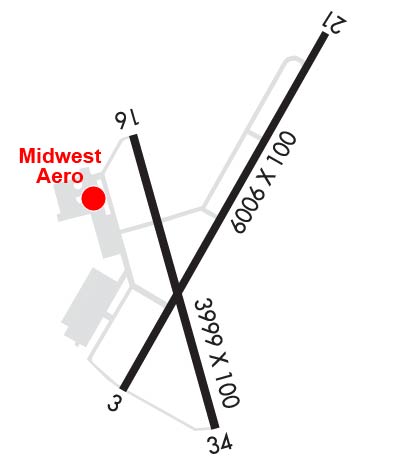

Airport Diagram might not be current. Facility Name: VERMILION REGIONAL City Name: DANVILLE County: VERMILION State abbrev: IL State Name: ILLINOIS     Ownership: PUBLICLY OWNED Use: OPEN TO THE PUBLIC Owner's Name: VERMILION REGIONAL ARPT AUTH Address: 22633 N. BOWMAN AVE. ATE 1   DANVILLE, IL 61832 Owner's Phone: 217-442-4624     Manager's Name: R. GAGNON Address: 22633 N. BOWMAN AVE. ATE 1   DANVILLE, IL 61832 Phone: 217-442-4624     FAA Region: GREAT LAKES FAA Field Office: CHI

2006- Photo courtesy of Brad Whitsitt Click here for full scale & interactive Sectional view of KDNV

Sunrise / Sunset times for:  VERMILION REGIONAL
Date: Sunrise Sunset 05/22/13 Wednesday 5:29 20:06 05/23/13 Thursday 5:28 20:06 05/24/13 Friday 5:28 20:07 05/25/13 Saturday 5:27 20:08 05/26/13 Sunday 5:26 20:09 05/27/13 Monday 5:26 20:10 05/28/13 Tuesday 5:25 20:11	:	Date: Sunrise Sunset 05/29/13 Wednesday 5:24 20:11 05/30/13 Thursday 5:24 20:12 05/31/13 Friday 5:24 20:13 06/01/13 Saturday 5:23 20:14 06/02/13 Sunday 5:23 20:14 06/03/13 Monday 5:22 20:15 06/04/13 Tuesday 5:22 20:16

Airport Facilities Airport Attendance Schedule: 7 Days A Week 0700-2200 Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS) Airport Lighting Schedule: HIRL RY 03/21 PRESET LOW INTST - TO INCR INTST & ACTVT MALSR RY 21, MIRL RY 16/34, VASI RYS 03, 16 & 34, PAPI RY 21, REIL RYS 16 & 34 - CTAF. Airport Storage Available: Tie Downs, Hanger Extra Services Available: Air Freight, Avionics, Charter, Flight Instruction Wind Indicator: YES - (lighted) Control Tower: NO CTAF Frequency: 122.700 Unicom Frequency: 122.700 Rotating Beacon Color: CLEAR-GREEN (Light Land Airport) Segmented Circle: NO Landing Fee: NO

Airport Services Type of Fuel Available: Grade 100LL, JET A (freeze point -40C) Airframe Repair Service: MAJOR Power Plant Repair Service: MAJOR

Geographic Data Latitude: N4012.0   Longitude: W08735.7  (ESTIMATED) Arpt Elevation: 696ft (SURVEYED) Magnetic Variation: 01W 4 miles NE of DANVILLE Traffic Pattern Altitude: Sectional Chart: CHICAGO

Aircraft Data Operations (reported) Yearly Avg. Daily General Aviation transient: 4000 11 General Aviation Local: 4850 13 Air Taxi: 1000 3 Commerical: 0 0 Commuter: 0 0 Military: 150 0 Aircraft based on Field General Aviation Singles: 55 General Aviation Multi: 7 Jet Aircraft: 0 General Aviation Helicopters: 1 Military Aircraft: 0 Gliders: 0 Ultralights: 0

FAA Services FSS on field: NO FSS tie-in: SAINT LOUIS FSS Phone: 1-800-WX-BRIEF Who issues Notams: DNV Notam D service at airport: YES ARTCC Name: CHICAGO     Federal Status Airport Certification: Aircraft Rescue & Firefighting Index: None Airport of Entry: No Custom Landing Rights: No Joint Civil/Military: No Military Landing rights: YES

Runway Identification: 03/21Length: 6006 ft Width: 100 ft Surface: ASPHALT-GOOD CONDITION Edge lights: High Intensity Treatment: POROUS FRICTION COURSE   Runway: 03   Runway: 21 Mag heading:  30° Mag heading:  210° Rwy Slope:  .76% Up Rwy Slope:  -.76% Down Approach:   Approach:  ILS Pattern:  Left Traffic Pattern:  Left Traffic Markings:  NONPRECISION INSTRUMENT Markings:  PRECISION INSTRUMENT Marking Condition:  GOOD Marking Condition:  FAIR Arresting Dev:   Arresting Dev:   Lat & Long:  N4011.6  W08736.0 Lat. & Long.:  N4012.5  W08735.3 Elev:  651.3 ft. MSL Elev:  696.9 ft. MSL TCH:  41 ft. AGL TCH:  46 ft. AGL Visual Glide Path:  3.00 degrees Visual Glide Path:  3.00 degrees Displaced Threshold:  No Displaced Threshold:  No Touchdown Zone:  YES Touchdown Zone:  YES Touchdown Elev.:  673.9 feet Touchdown Elev.:  696.9 feet Visual Glide Slope:  4-BOX VASI ON LEFT SIDE OF RUNWAY Visual Glide Slope:  4-Light PAPI on LEFT side of Runway RVR Equipment:   RVR Equipment:   RVV Equipment:  NO RVV Equipment:  NO Approach Lights:   Approach Lights:  MALSR - 1,400 foot medium intensity approach lighting system with runway alignment indicator lights REIL:  NO REIL:  NO Centerline Lights:  NO Centerline Lights:  NO Touchdown lights:  NO Touchdown lights:  NO Runway Category:  OTHER THAN UTILITY RUNWAY WITH A NON PRECISION APPROACH HAVING VISIBILITY MINIMUMS GREATER THAN 3/4 MILE Runway Category:  PRECISION INSTRUMENT RUNWAY Declared Distances:   Declared Distances:   Obstructions:  TREE Obstructions:   Marked:  NOT Marked/Lighted; OBSTACLES MEASURED USING IDOT TOTAL STATION Marked:   Clearance slope:  24:1 Clearance slope:  50:1 Obstruction height:  51 feet AGL Obstruction height:   Dist. from runway:  1450 feet Dist. from runway:   Centerline offset:  146 right of centerline Centerline offset:   Comments:   Comments:

Runway Identification: 16/34Length: 3999 ft Width: 100 ft Surface: ASPHALT-GOOD CONDITION Edge lights: Medium Intensity Treatment: GROOVED   Runway: 16   Runway: 34 Mag heading:  165° Mag heading:  345° Rwy Slope:  -.64% Down Rwy Slope:  .64% Up Approach:   Approach:   Pattern:  Left Traffic Pattern:  Left Traffic Markings:  BASIC Markings:  NONPRECISION INSTRUMENT Marking Condition:  FAIR Marking Condition:  FAIR Arresting Dev:   Arresting Dev:   Lat & Long:  N4012.2  W08736.0 Lat. & Long.:  N4011.5  W08735.7 Elev:  681.8 ft. MSL Elev:  656.3 ft. MSL TCH:  23 ft. AGL TCH:  14 ft. AGL Visual Glide Path:  3.00 degrees Visual Glide Path:  3.00 degrees Displaced Threshold:  No Displaced Threshold:  No Touchdown Zone:  YES Touchdown Zone:  YES Touchdown Elev.:  681.8 feet Touchdown Elev.:  666.8 feet Visual Glide Slope:  2-Box VASI on LEFT side of Runway Visual Glide Slope:  2-Box VASI on LEFT side of Runway RVR Equipment:   RVR Equipment:   RVV Equipment:  NO RVV Equipment:  NO Approach Lights:   Approach Lights:   REIL:  YES REIL:  YES Centerline Lights:  NO Centerline Lights:  NO Touchdown lights:  NO Touchdown lights:  NO Runway Category:  Utility Runway with a Visual Approach Runway Category:  UTILITY RUNWAY WITH A NONPRECISION APPROACH Declared Distances:   Declared Distances:   Obstructions:  TREE Obstructions:  ROAD Marked:  NOT Marked/Lighted Marked:  NOT Marked/Lighted Clearance slope:  26:1 Clearance slope:  26:1 Obstruction height:  120 feet AGL Obstruction height:  59 feet AGL Dist. from runway:  3399 feet Dist. from runway:  1746 feet Centerline offset:  27 left of centerline Centerline offset:  339 feet left of centerline Comments:   Comments:

Federal Agreements NATIONAL PLAN OF INTEGRATED AIRPORT SYSTEMS (NPIAS) GRANT AGREEMENTS UNDER FAAP/ADAP/AIP ASSURANCES PURSUANT TO TITLE VI, CIVIL RIGHTS ACT OF 1964

Airport Inspection Data Airport Inspected: FEDERAL - performed by STATE AERONAUTICAL PERSONNEL Inspection Date: 08/29/2011

Airport Communications & Frequencies: Clearance Delivery Frequencies: 121.7 CTAF Frequency: 122.700 Unicom Frequency: 122.700 Remarks APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON REMOTED CHAMPAIGN APCH CTL FREQS 121.35 & 353.95 (DANVILLE RCAG) WHEN CHAMPAIGN APCH CTL CLSD. CHAMPAIGN Primary Approach Frequencies:   121.35 285.65 CHAMPAIGN Primary Departure Frequencies:   121.35 285.65

8/3/6
