 Airport / FBO Information
60R       NAVASOTA MUNI       NAVASOTA       TX
  Time Zone: CT
Lat: N 3022.0     Long: W 09606.8     Elev: 229     Var: -03  Longest Runway: 5003

    CTAF: 122.9

FBO info for K60R:
SPINNER AVIATION Ph: 979-777-3195
-
Freq: 122.9


FBO's at nearby airports who want your business:

 Runway & Approach Info
  Rwy
    Length
  Land Dist Avail
  Approach*
    Rwy
Length
  Land Dist Avail
 Approach*
17
5003x75  5003'


35
  5003x75  5003'

 * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown

Runway Weight Capability   (lbs.)
Runway IDSingle WheelDouble WheelDouble Tandem WheelDual Double Wheel
17/3530,000N/AN/AN/A


Database effective date: 04/03/2014

Airport Diagram might not be current.

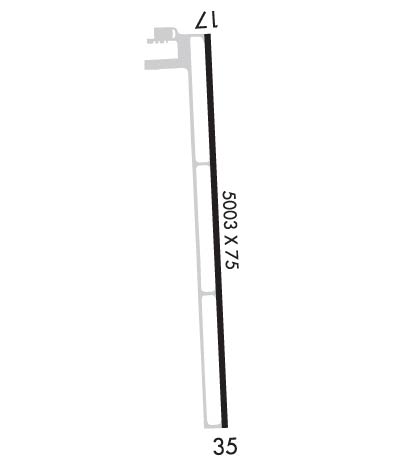

Airport Diagram of K60R
Facility Name: NAVASOTA MUNI
City Name: NAVASOTA
County: GRIMES
State abbrev: TX
State Name: TEXAS

Ownership: PUBLICLY OWNED
Use: OPEN TO THE PUBLIC
Owner's Name: CITY OF NAVASOTA
Address: PO BOX 910
 NAVASOTA, TX 77868
Owner's Phone: 936-825-6475

Manager's Name: GARY JOHNSON
Address: PO BOX 910
 NAVASOTA, TX 77868
Phone: 936-825-6450

FAA Region: SOUTHWEST
FAA Field Office: TEX

Click here to submit your photo
Click here for full scale & interactive Sectional view of K60R
Click here for full scale & interactive Sectional view of K60R
Sunrise / Sunset times for:
NAVASOTA MUNI
Date: Sunrise Sunset
March 01, 2014 7:5119:23
April 01, 2014 7:1419:43
May 01, 2014 6:4120:02
June 01, 2014 6:2320:22
July 01, 2014 6:2620:30
August 01, 2014 6:4320:18
September 01, 2014 7:0119:47
October 01, 2014 7:1819:10
November 01, 2014 7:3918:37
December 01, 2014 8:0318:23
January 01, 2015 8:2118:35
February 01, 2015 8:1619:01

 Airport Facilities
Airport Attendance Schedule: UNATTENDED
Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS)
Airport Lighting Schedule: ACTVT MIRL RY 17/35 - 123.3
Airport Storage Available: Tie Downs
Extra Services Available: NONECrop Dusting, Avionics, Charter, Flight Instruction, Aircraft RentalFlight InstructionFlight Instruction, Aircraft RentalFlight InstructionFlight Instruction, Aircraft RentalGlider
Wind Indicator: YES - (lighted)
Control Tower: NO
CTAF Frequency: 122.900
Unicom Frequency:
Rotating Beacon Color: CLEAR-GREEN (Light Land Airport)
Segmented Circle: YES
Landing Fee: NO

Airport Services
Type of Fuel Available: Grade 100LL
Airframe Repair Service: MAJOR
Power Plant Repair Service: MAJOR

Geographic Data
Latitude: N3022.0   Longitude: W09606.8  (ESTIMATED)
Arpt Elevation: 229ft (SURVEYED)
Magnetic Variation: 03E
2 miles SW of NAVASOTA
Traffic Pattern Altitude:
Sectional Chart: HOUSTON

  Aircraft Data
Operations (reported)
YearlyAvg. Daily
General Aviation transient: 15004
General Aviation Local: 30008
Air Taxi: 00
Commercial: 00
Commuter: 00
Military: 00
Aircraft based on Field
General Aviation Singles: 32
General Aviation Multi: 0
Jet Aircraft: 0
General Aviation Helicopters: 0
Military Aircraft: 0
Gliders: 0
Ultralights: 0

  FAA Services
FSS on field: NO
FSS tie-in: MONTGOMERY COUNTY
FSS Phone: 1-800-WX-BRIEF
Who issues Notams: CXO
Notam D service at airport: YES
ARTCC Name: HOUSTON

  Federal Status
Airport Certification:
Aircraft Rescue & Firefighting Index: None
Airport of Entry: No
Custom Landing Rights: No
Joint Civil/Military: No
Military Landing rights: No

Runway Identification: 17/35
Length: 5003 ft
Width: 75 ft
Surface: ASPHALT
Edge lights: Medium Intensity




Runway: 17

Runway: 35
Mag heading:  175Mag heading:  355
Rwy Slope:  -.70% DownRwy Slope:  .70% Up
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  NONPRECISION INSTRUMENTMarkings:  NONPRECISION INSTRUMENT
Marking Condition:  GOODMarking Condition:  GOOD
Arresting Dev:  Arresting Dev:
Lat & Long:  N3022.4  W09606.8Lat. & Long.:  N3021.6  W09606.8
Elev:  229.0 ft. MSLElev:  194.0 ft. MSL
TCH:  45 ft. AGLTCH:  46 ft. AGL
Visual Glide Path:  3.00 degreesVisual Glide Path:  3.00 degrees
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  YESTouchdown Zone:  YES
Touchdown Elev.:  229.0 feetTouchdown Elev.:  215.0 feet
Visual Glide Slope:  2-Light PAPI on LEFT side of RunwayVisual Glide Slope:  2-Light PAPI on LEFT side of Runway
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  YESREIL:  YES
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Catagory:  OTHER THAN UTILITY RUNWAY WITH A NON PRECISION APPROACH HAVING VISIBILITY MINIMUNS GREATHER THAN 3/4 MILERunway Catagory:  OTHER THAN UTILITY RUNWAY WITH A NON PRECISION APPROACH HAVING VISIBILITY MINIMUNS GREATHER THAN 3/4 MILE
Obstructions:  PLINEObstructions:
Marked:  NOT Marked/LightedMarked:
Clearance slope:  24:1Clearance slope:  50:1
Obstruction height:  12 feet AGLObstruction height:
Dist. from runway:  493 feetDist. from runway:
Centerline offset:  0BCenterline offset:
Comments:  Comments:

Remarks
  • (A89) FOR FP FILING CALL CXO FSS 1-800-833-5602
  • PAEW INVOF RY.

  • Airport Inspection Data
    Airport Inspected:: STATE - performed by PRIVATE CONTRACT PERSONNEL
    Inspection Date: 09/16/2011



    Airport Communications & Frequencies:
    CTAF Frequency: 122.900

    Remarks
  • CTC HOUSTON APCH CTL FOR CLNC DELIVERY AT 281-230-8444.

  • HOUSTON Primary Approach Frequencies:   Hours(local) of operation: MIDLAND 0600-0000 SAN ANGELO 0600-2100
    134.3
    360.85
    HOUSTON Primary Departure Frequencies:   Hours(local) of operation: MIDLAND 0600-0000 SAN ANGELO 0600-2100
    134.3
    360.85
