 Airport / FBO Information
07A       FRANKLIN FIELD       UNION SPRINGS       AL
  Time Zone: CT
Lat: N 3210.0     Long: W 08548.6     Elev: 300     Var: +01  Longest Runway: 3660
       CTAF: 122.8

FBO info for K07A:
FRANKLIN FIELD Ph: 334-738-3883 Fax: 334-738-3839 Freq: 122.8


FBO's at nearby airports who want your business:

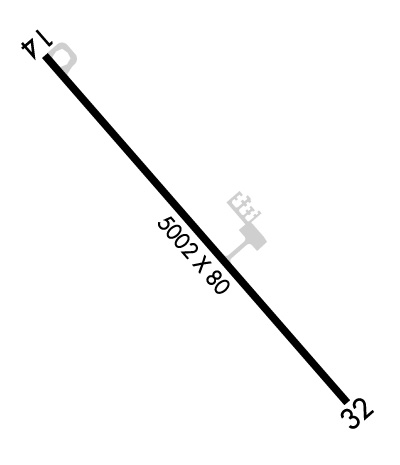

 Runway & Approach Info
  Rwy
    Length
  Land Dist Avail
  Approach*
    Rwy
Length
  Land Dist Avail
 Approach*
14
3660x80  3660'


32
  3660x80  3660'

 * only ILS, LOC, LDA, and SDF approaches to a specific runway are shown

Runway Weight Capability   (lbs.)
Runway IDSingle WheelDouble WheelDouble Tandem WheelDual Double Wheel
14/3215,000N/AN/AN/A


Database effective date: 10/22/2009

Facility Name: FRANKLIN FIELD
City Name: UNION SPRINGS
County: BULLOCK
State abbrev: AL
State Name: ALABAMA

Ownership: PUBLICLY OWNED
Use: OPEN TO THE PUBLIC
Owner's Name: BULLOCK COUNTY
Address: PO BOX 352
 UNION SPRINGS, AL 36089
Owner's Phone: 334-738-3883

Manager's Name: FRANKLIN FIELD AIRPORT AUTHORITY; BOB GRAY, CHAIRMAN
Address: 214 NORTH PRAIRIE STREET
 UNION SPRINGS, AL 36089
Phone: 334-738-3883

FAA Region: SOUTHERN
FAA Field Office: JAN

Click here to submit your photo
Area Map of 07A
Click Here for Rand McNally Map of 07A

Sunrise / Sunset times for:
FRANKLIN FIELD
Date: Sunrise Sunset
September 01, 2009 6:1819:08
October 01, 2009 6:3718:28
November 01, 2009 6:0016:53
December 01, 2009 6:2616:38
January 01, 2010 7:4417:50
February 01, 2010 7:3718:17
March 01, 2010 7:1118:41
April 01, 2010 6:3219:03
May 01, 2010 5:5719:24
June 01, 2010 5:3819:45
July 01, 2010 5:4019:54
August 01, 2010 5:5819:41

 Airport Facilities
Airport Attendance Schedule: UNATTENDED
Airport Status: OPERATIONAL (This Status can change at any time - please check NOTAMS)
Airport Lighting Schedule: DUSK-DAWN; ACTVT MIRL RY 14/32 - CTAF.
Airport Storage Available: Tie Downs
Extra Services Available: NONEFlight Instruction, Aircraft RentalAircraft RentalCrop Dusting
Wind Indicator: YES - (lighted)
Control Tower: NO
CTAF Frequency: 122.800
Unicom Frequency: 122.800
Rotating Beacon Color: CLEAR-GREEN (Light Land Airport)
Segmented Circle: NO
Landing Fee: NO

Airport Services
Type of Fuel Available: Grade 100; SELF-SERVICE FUEL AVBL.
Airframe Repair Service: NONE
Power Plant Repair Service: NONE

Geographic Data
Latitude: N3210.0   Longitude: W08548.6  (ESTIMATED)
Arpt Elevation: 300ft (SURVEYED)
Magnetic Variation: 01W
5 miles W of UNION SPRINGS
Traffic Pattern Altitude:
Sectional Chart: ATLANTA

  Aircraft Data
Operations (reported)
YearlyAvg. Daily
General Aviation transient: 575016
General Aviation Local: 7952
Air Taxi: 00
Commercial: 00
Commuter: 00
Military: 00
Aircraft based on Field
General Aviation Singles: 11
General Aviation Multi: 0
Jet Aircraft: 0
General Aviation Helicopters: 0
Military Aircraft: 0
Gliders: 0
Ultralights: 0

  FAA Services
FSS on field: NO
FSS tie-in: ANNISTON
FSS Phone: 1-800-WX-BRIEF
Who issues Notams: ANB
Notam D service at airport: YES
ARTCC Name: ATLANTA

  Federal Status
Airport Certification:
Aircraft Rescue & Firefighting Index: None
Airport of Entry: No
Custom Landing Rights: No
Joint Civil/Military: No
Military Landing rights: No

Runway Identification: 14/32
Length: 3660 ft
Width: 80 ft
Surface: ASPHALT-GOOD CONDITION
Edge lights: Medium Intensity



Runway: 14

Runway: 32
Mag heading:  N/AMag heading:  N/A
Rwy Slope:  .20% UpRwy Slope:  -.20% Down
Approach:  Approach:
Pattern:  Left TrafficPattern:  Left Traffic
Markings:  BASICMarkings:  BASIC
Marking Condition:  GOODMarking Condition:  GOOD
Arresting Dev:  Arresting Dev:
Lat & Long:  N3210.2  W08548.8Lat. & Long.:  N3209.7  W08548.4
Elev:  292.5 ft. MSLElev:  299.8 ft. MSL
TCH:  TCH:
Visual Glide Path:  Visual Glide Path:
Displaced Threshold:  NoDisplaced Threshold:  No
Touchdown Zone:  NOTouchdown Zone:  NO
Touchdown Elev.:  Touchdown Elev.:
Visual Glide Slope:  Visual Glide Slope:
RVR Equipment:  RVR Equipment:
RVV Equipment:  NORVV Equipment:  NO
Approach Lights:  Approach Lights:
REIL:  NOREIL:  NO
Centerline Lights:  NOCenterline Lights:  NO
Touchdown lights:  NOTouchdown lights:  NO
Runway Catagory:  Utility Runway with a Visual ApproachRunway Catagory:  Utility Runway with a Visual Approach
Obstructions:  TREESObstructions:  TREES
Marked:  NOT Marked/LightedMarked:  NOT Marked/Lighted
Clearance slope:  24:1Clearance slope:  10:1
Obstruction height:  67 feet AGLObstruction height:  95 feet AGL
Dist. from runway:  1821 feetDist. from runway:  1198 feet
Centerline offset:  24 right of centerlineCenterline offset:  107 feet right of centerline
Comments:  Comments:

Remarks
  • DEER ON & INVOF ARPT.
  • ARPT CLSD TO NIGHT OPNS.
  • RWY 14/3 2 RY 14/32 HAS ROUGH & UNEVEN STRETCH OF PAVEMENT FROM 600 FT TO 1510 FT FROM AER 32.

    • Airport Inspection Data
    Airport Inspected:: STATE - performed by STATE AERONAUTICAL PERSONNEL
    Inspection Date: 01/21/2009
